                      Solar Fridge Fan |

                    |


                  |   |
                    |


                  |   |


                  |   |




                    | Solar Fridge Fan Model SF-123 |


                    |   |


                    SOLATRON  Solar Fridge Fan controls heat built-up in the vent compartment behind your DC  refrigerators. This heat built-up can dramatically reduce the efficiency of  your refrigerator especially when the DC refrigerator is inside the caravan or  boat under a hot sun. With free energy from the sun, you will be able to stop  food spoilage and keep it cool.
 |


                    |   |


                    Features:

                        - Powered by solar       energy, no battery and no pollution.

                        - Reliable single or       poly crystal silicon solar cells.

                        - Increase cooling       efficiency up to 40%.

                        - Reduces energy       consumption.

                        - Prolong       refrigerator life.

                        - Easy installation.

                                              |


                    |   |


                    Specifications:


                          - Package Include:


                            - One unbreakable        solar panel

                            - One fan with motor        unit

                            - Four meters lead        wire and two wire nuts

                            - Five mounting        screws





                        ·  Unbreakable Solar Panel:

                          - Cell Material:       Single or Poly-crystal silicon

                          - Solar Output: 1.7V,       400mA min. under a full sun

                          - Dimensions:       12.8cm x 5.9cm x 0.5cm

                          - Two Color Lead       Wire: 50cm in length with male connector


                        ·  Fan/Motor Unit:

                          - A one piece structure       with mounting bracket

                          - DC Motor: 0.5-6.0V,       1,300RPM

                          - Lead Wire: 4m in       length with female connector (Wire can be cut into desired length)


                        ·  Dimensions:

                          - Fan Blade: Diameter       7.8cm(3")

                          - Outer Housing       Diameter: 8cm

                          - Total Height: 8.5cm

                          - Length of Fan Housing:       5cm

                          - Center to Center       Distance for Fitting Hole: 8.8cm


                        ·  Packing:

                          - 60pcs/ctn 5.0cuft /       19.0kg(N.W.) / 20.5kg(G.W.)

                          - Each set packed in       color printed hard paper box



                                                  |

                  |
                 |


                |   |
                  |





  |




                          |
                        12VDC Power Fridge Fan |

                      |


                    |   |

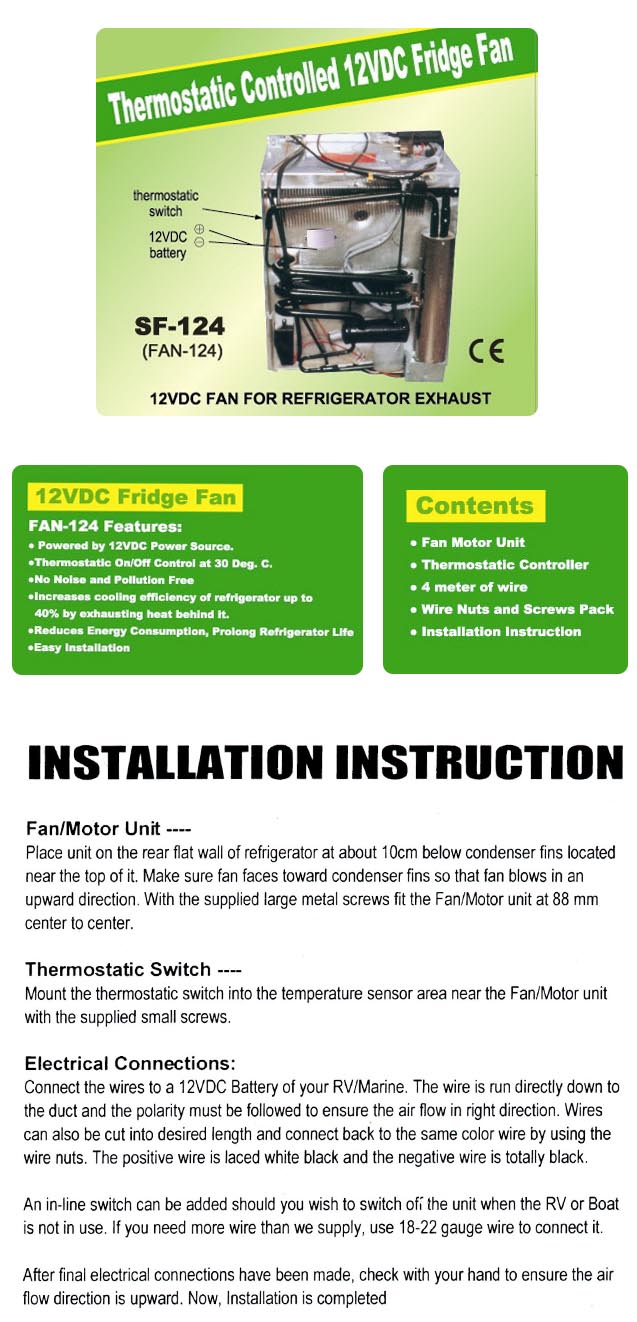

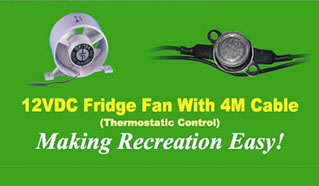

                    | Thermostatic Control 12VDC Fridge Fan with 4M Cable |


                    |   |




                        | Model: SF-124 |
                          |
                          |


                        |   |
                          |
                          |


                        SOLATRON 12VDC Power Fridge Fan controls heat built-up in the vent compartment behind  your RV/Marine refrigerators. This heat built-up can dramatically reduce the  efficiency of your refrigerator especially when the RV/Marine is under a hot  sun.  DC refrigerator is inside the  caravan or boat under a hot sun. With the 12VDC Power Fridge Fan, you will be  able to stop food spoilage and keep it cool.
                          Experience  shows it will increase cooling efficiency of the refrigerator up to 50%.  For energy saving the fan is controlled to be  stopped automatically at the sense temperature of around 30℃.  |
                          |
                          |

                        |


                    |   |


                      |


                    |   |

                  |


                |   |
                  |

                |

          |
